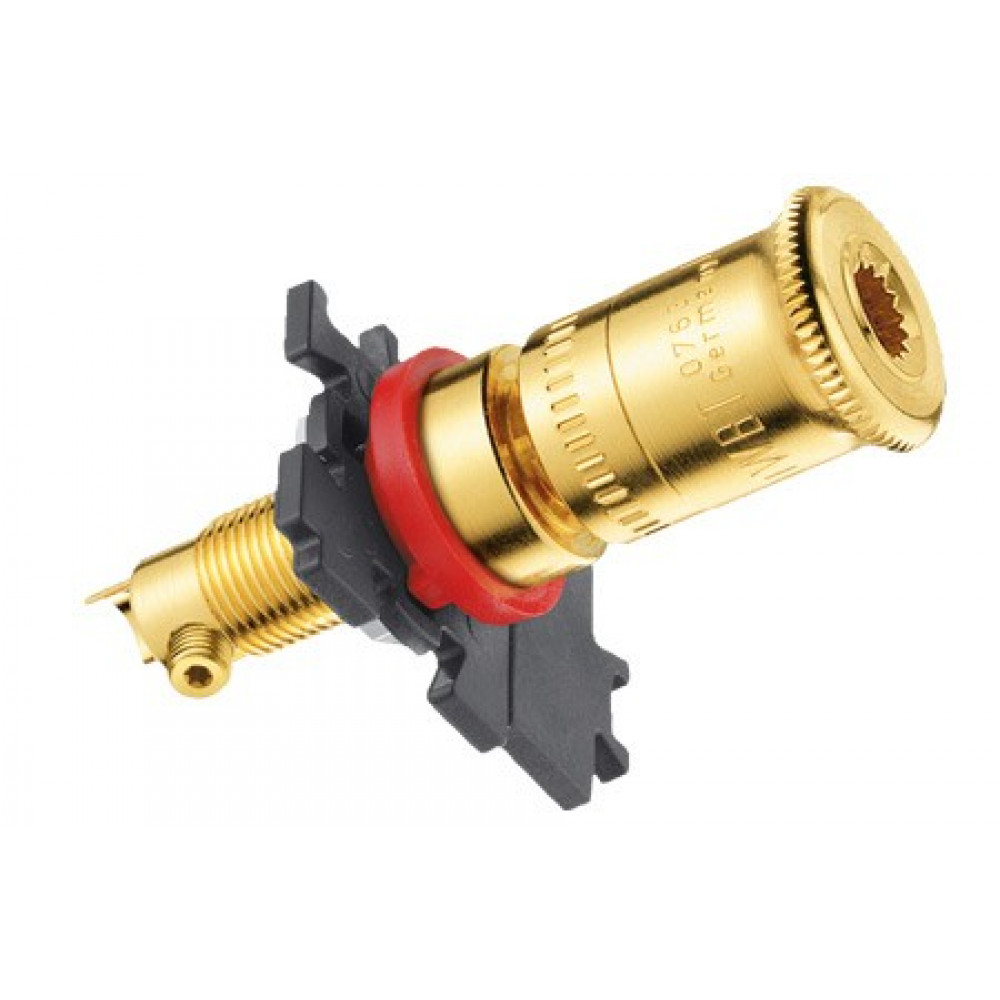

WBT 0763
WBT-0763
» Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
» Pat. two-piece clamping nut for maximum strength of connection
» Solder or crimp connection
» 24 carat multi layer gold plating
» Max. constant current 70 A
» Twist-proof mounting
» Puzzle plate system
Conductor cross section (max.): outside: 6 mm2 (9 AWG)
inside: 10 mm2 (7 AWG)
Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
inside: crimping (T.6 Torx screw required) or soldering
Wall thickness: 0.1 - 10 mm
Identification: red, white or black
Installation: with the spacer WBT-9404 also as a double terminal
