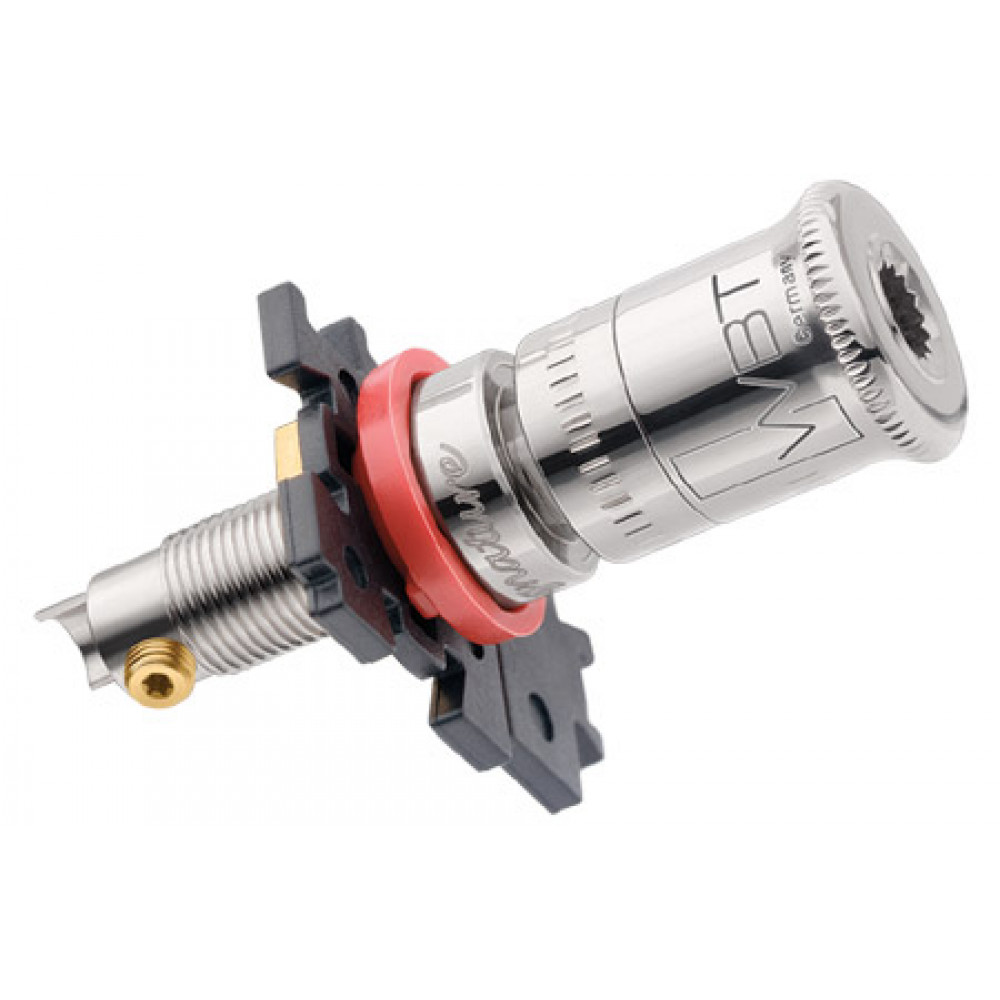

WBT 0730.12
WBT-0730.12
» Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
» Pat. two-piece clamping nut for maximum strength of connection
» Solder or crimp connection with Torx screw
» Direct platinum plating (nickel-free)
» Max. constant current 70 A
» Twist-proof mounting
» Puzzle plate system
Conductor cross section (max.): outside: 6 mm2 (10 AWG)
inside: 10 mm2 (8 AWG)
Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
inside: crimping or soldering
Wall thickness: 0.1 - 6 mm
Identification: red/white
Installation: with the spacer WBT-9404 also as a double terminal
