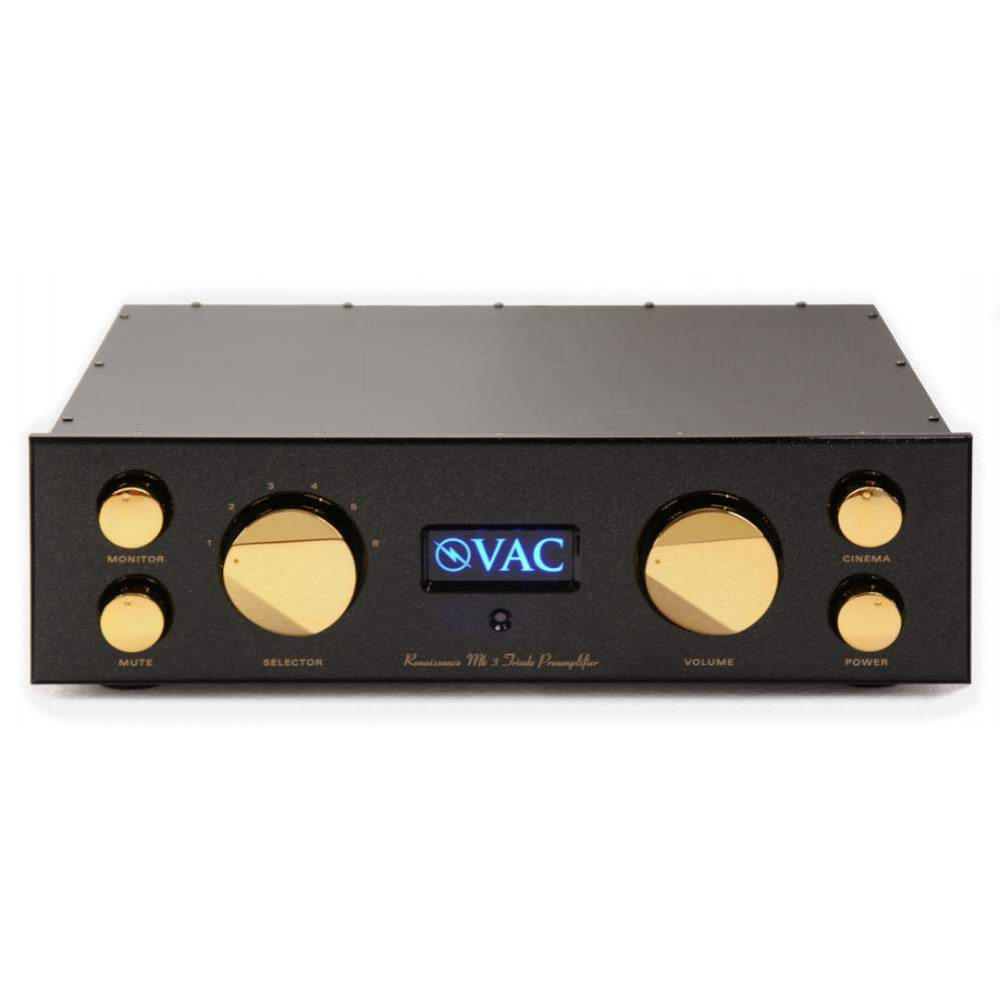

VAC Renaissance MkIII Preamp with Phono Input
Ламповый предусилитель
Технические характеристики:
Gain |
22 dB |
Inputs |
|
Outputs |
2 sets balanced |
Tubes |
2x 12AU7 4x 12AX7 |
Absolue Phase |
Correct from all inputs to all outputs |
Frequency Response |
Flat over audio band -3 db bandwidth 4 Hz - 200 kHz |
THD |
Approx. .04% |
Maximum Output |
30 volts RMS single-ended; >30 volts RMS-balanced |
Output Impedance |
Via RCA jacks: 300 ohms; inverting from all sources to RCA main outputs only |
Maximum Input |
Infinite signal (attenuation precedes the gain circuitry) |
Recommended Output Load |
> 10000 ohms |
Power |
External power supply, detachable umbilical cable, detachable IEC power cord |
Tape Output |
Unity gain from selector, non-inverting for archival integrity |
Cinema Bypass |
Yes |
Voltage |
May be ordered for 100v, 120v, 220v, or 230/240v operation |
Remote Control |
Included |
Illumination |
Illuminated logo may be switched off |
Finish |
Hand-rubbed gold-flake gloss black lacquer with chrome knobs standard. Hand-rubbed metallic gloss silver lacquer with chrome knobs special order with additional cost. |
Warranty |
Two years parts and labor, excluding tubes (USA, see manual for full details) |
Dimensions (H x W x D) |
Audio chassis (including knobs and connectors): 5.5 x 17.9 x 15.3 in. (14 x 45.5 x 38.9 cm.) Power supply (not including cables and cable clamp): 4.75 x 6.75 x 14 in. (12.1 x 17.1 x 35.6 cm.) |
Shipping Weight |
Audio chassis: 40 lbs. (18.2 kg.) |
Phono Stage (optional) | |
Tubes |
3x 12AX7 |
Gain |
462 dB MC, 42 dB MM (measured at tape output) |
Frequency Response |
RIAA +/- .25 dB |
Channel Seperation |
> 70dB @ 1 kHz |
Maximum Input |
Infinite signal (attenuation precedes the gain circuitry) |
MC Load Impedance |
selectable, 470, 300, 250, 200, 150, and 100 ohms |
MM Load Impedance |
selectable, 47k, 30k, 25k, 15k, and 10k ohms |
Overload |
117MV @ 1kHz = 8 volts RMS output; 460MV @ 10kHz |
Residual Noise |
Less than 3MV at output (s/n ratio greater than approx. 69db |
Both MM and MC cartridges may be simultaneously installed, selected by rear panel switch.
Стоимось версии предусилителя с фонокорректором Renaissance MkIII Preamp with Phono Input – 15950$
