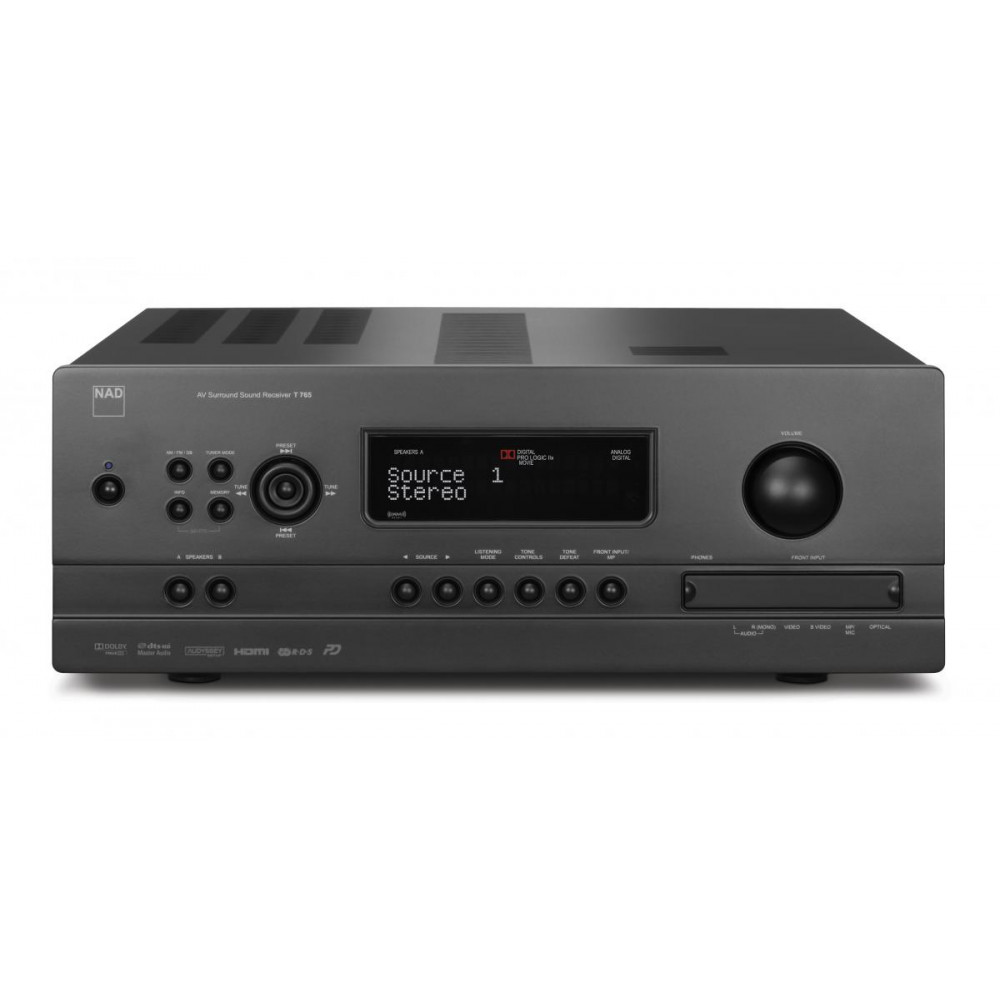

NAD T 765 HD2
Технические характеристики T 765HD2 A/V Surround Sound Receiver
- 140W x 7 (FTC) Power
- 7 x 80W Minimum Continuous Power into 4/8 ohms, all channels driven simultaneously, 20Hz – 20kHz at 0.05%THD (NAD Full Disclosure Power)
- PowerDrive™ amplifi er technology
- MDC (Modular Design Construction) allows future upgrades, includes AM 100 Dual DSP Audio module and VM 100 3D Video Module with HDMI
- 3D Video support
- Lossless decoding: Dolby TrueHD and DTS-HD Master Audio
- Dolby Digital, Dolby Digital Plus, ProLogic II, ProLogic IIx, DTS, DTS ES, DTS 96/24, DTS NEO:6, EARS and Enhanced Stereo Surround Modes
- Audyssey Setup and Calibration of all speaker settings using supplied microphone
- 5 A/V Custom Presets store unique speaker level and tone control settings
- Direct access speaker level adjustment for surround, centre and subwoofer
- NAD Soft Clipping™
- 7 Analogue Stereo Audio Inputs including 1 Audio Front Input in the front panel
- Media Player MP front panel input
- 6 Analogue Video Inputs including 1 S-Video and 1 C
- omposite Front Video input in the front panel
- 3 Component Video Inputs
- 7 Digital Audio Inputs - 3 Coaxial and 4 Optical including Optical Front input in the front panel
- 4 HDMI Digital Video Inputs and 1 Outputs, freely assignable
- Cross Conversion of all analogue video formats
- Analogue video to HDMI Conversion
- 3 Analogue Audio outputs including Zone 2 Audio Out and with the 2 other Audio outputs assignable also as Zone 3 and Zone 4 Audio Out
- Back Surround Amplifi er Channels can be reassigned as Zone 2, 3, 4 or Main Front (Bi-Amp)
- 4 Video Monitor Outputs – HDMI, Component, S-Video and Composite formats
- 3 Analogue Video Outputs - 2 Video (Composite and S-Video) and 1 Zone (Composite)
- 7.2 Analogue Pre-Out (2 Subwoofers)
- 2 Digital Outputs - 1 Coaxial and 1 Optical (TOSLINK)
- 7.1 Analogue Input
- Speaker A + B switching (Speakers B stereo only)
