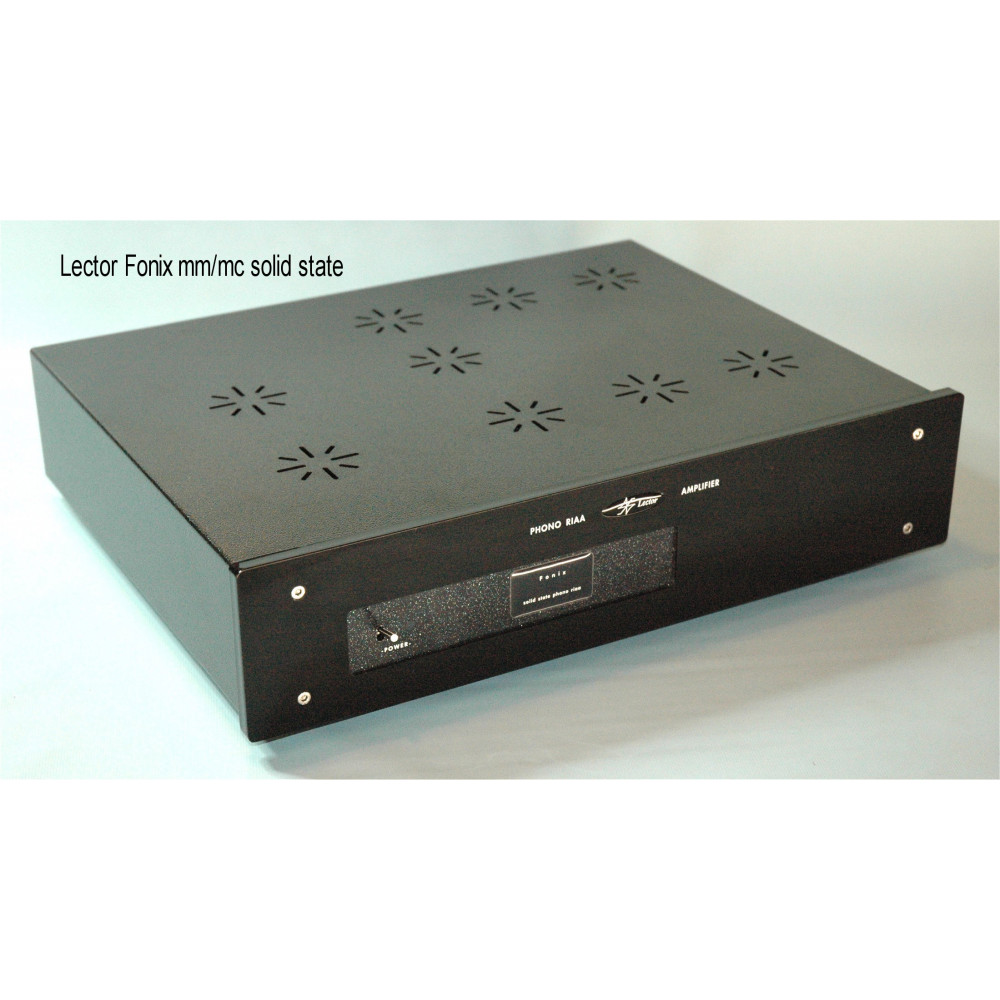

Lector FONIX
- Производитель: Lector
- Код товара: 12776
- НЕТ В НАЛИЧИИ. Товар снят с производства
Заказ в 1 клик
E x p e r i e n c e t h e F i r s t t a s t e !
Made by two separated circuits for MM ( moving magnet cartdrige) and MC ( moving coil cartridge)
for two phono riaa equalization inputs.
Two turntables are allowed to be connected at the same time.
MC input provided with RCA resistive terminations taps for impedance matching.
All components are premium grade quality precision: film & foil capacitors with very low noise and high precision, resistors at 1 %
low resistance power supply new technology, with shunt-parallel circuit configuration.
All golden plate connectors and terminations as well teflon insulators.
I n c l u d e d :
- Resistors taps sets for matching MC resistance as: 30 / 100 / 470 / 1000 ohm
- Mains power AC cord ( available Schuko, USA, UK etc)
- Solid wood or plexiglas side panles ( optionals)
- owner`s manual of instruction
Type of unit |
very low noise solid state phono riaa preamplifier for MM and MC |
GAIN MM / MC |
MM: 43 db MC: 65 db |
Input sensitivity & Impedance |
MM: 1.5 mV / 47Kohm-100pF / MC: 0.4 mV / 47 Kohm -1500 pF |
Frequency response |
20 - 20 Khz ; +/- 0.5 db |
Output impedance |
100 ohm / 10 Volt rms |
Harmonic Distorsion |
THD < 0.1 % |
S/N Ratio |
100 db ( A-weighted) |
Line Output |
1 one stereo output |
MC set resistor value |
30 ohm BLUE / 100 ohm BLACK / 470 ohm GREEN /1000 ohm YELLOW |
Mains Voltage |
100/120/230/240 VAC - 50/60 Hz- 500 VA |
Dimensions ( W x D x H) |
400 mm x 300 mm x 85 mm |
Weight ( net/gross) |
7 Kg / 9 Kg |
